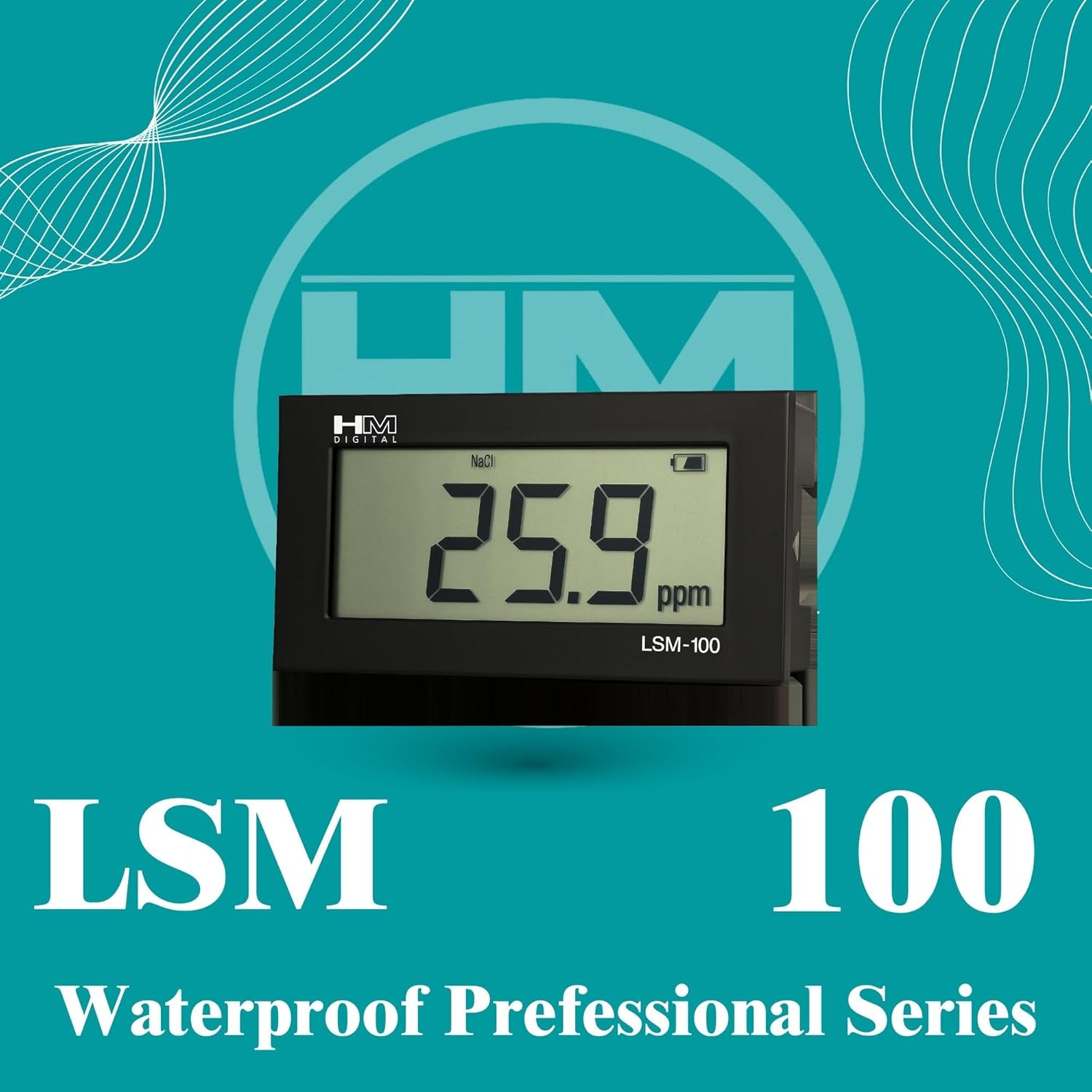

Commercial-Grade EC/TDS Monitor with Extra-Large Display
The HM Digital LSM-100 Commercial EC/TDS Monitor is designed for professional applications requiring continuous water quality monitoring. With its extra-large, easy-to-read display and industrial 1/2" NPT threaded sensor, the LSM-100 is the ideal solution for commercial hydroponics, aquaculture, water treatment facilities, and industrial process monitoring.
Key Benefits
-
Extra-Large Display: Easy-to-read screen perfect for commercial and industrial settings
-
Industrial Sensor: 1/2" NPT threaded probe designed for large-scale systems and permanent installation
-
Multiple Measurement Units: Displays ppm, ppt, µS, and mS for versatile applications
-
Extended Battery Life: Approximately 2 years of continuous monitoring on 2 AA batteries
-
Long Sensor Cable: 3-meter (9.8 ft) cable allows flexible installation
-
Automatic Temperature Compensation: Built-in ATC ensures accurate readings across temperature variations
Ideal Applications
Perfect for commercial hydroponics operations, aquaculture facilities, water treatment plants, industrial process monitoring, reverse osmosis systems, and any application requiring continuous EC/TDS monitoring with a large, visible display.

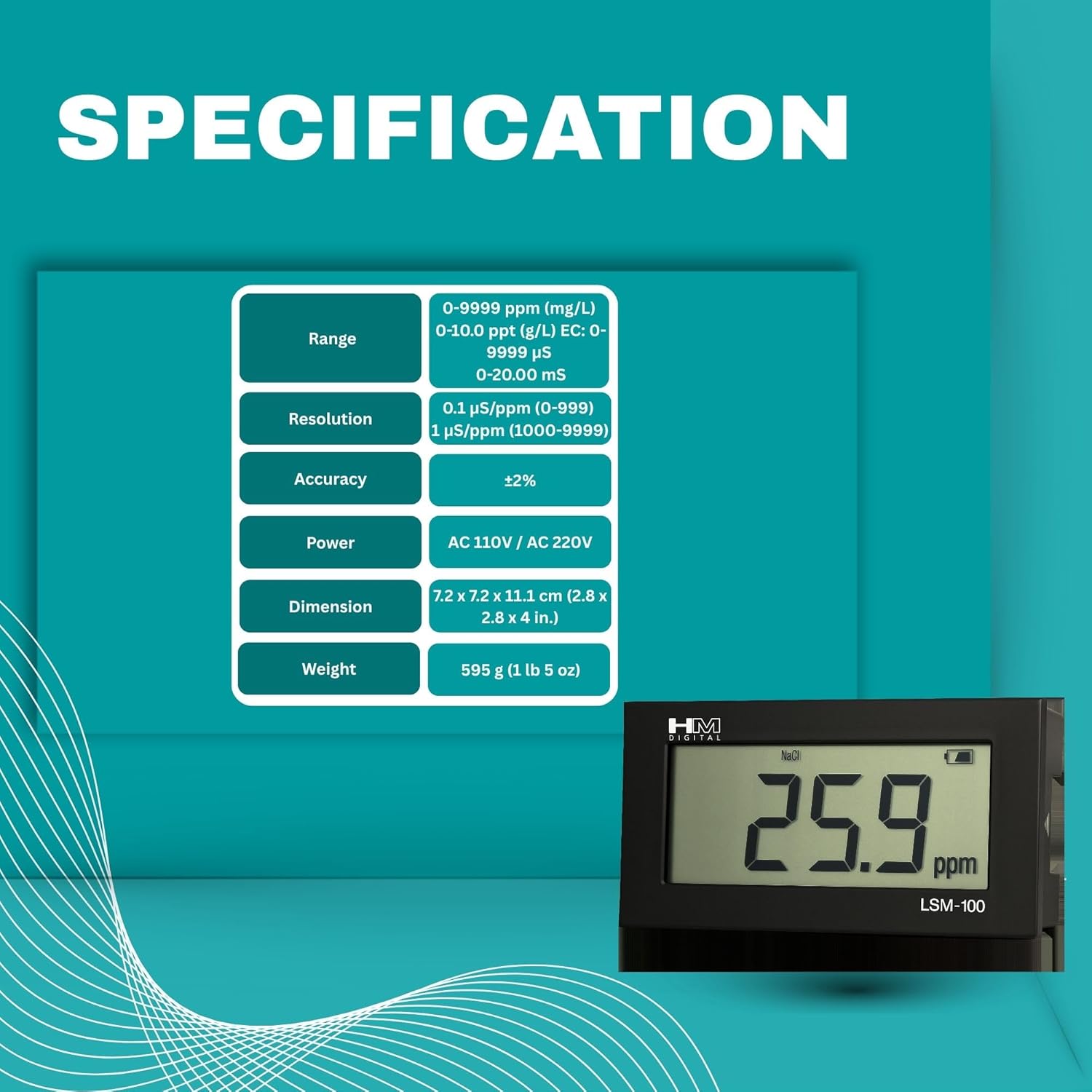

Technical Specifications
-
TDS Range: 0-9999 ppm (mg/L); 0-10.0 ppt (g/L)
-
EC Range: 0-9999 µS; 0-20.00 mS
-
Accuracy: ±2%
-
Resolution: 0-99.9: 0.1 ppm/µS; 100-9999: 1 ppm/µS
-
Temperature Compensation: Automatic (1-65°C)
-
Calibration: Digital calibration to any point
-
Sensor Type: 1/2" NPT threaded probe
-
Sensor Cable Length: 3 m (9.8 ft)
-
Power Source: 2 x 1.5V AA batteries
-
Battery Life: Approximately 2 years
-
Dimensions: 12 x 7.5 x 2.6 cm (4.7 x 3 x 1 in)
-
Weight: 197 g (7 oz)
Understanding EC and TDS Measurements
Electrical Conductivity (EC) measures the ability of water to conduct electricity, which correlates directly to the concentration of dissolved salts and minerals. Total Dissolved Solids (TDS) represents the total concentration of dissolved substances in water. The LSM-100 provides both measurements, allowing you to monitor water quality in the units most relevant to your application.
Professional Features
- Extra-large LCD display for easy viewing from a distance
- Industrial 1/2" NPT threaded sensor for permanent installation
- Multiple measurement units (ppm, ppt, µS, mS) for versatile applications
- Digital calibration system for precise adjustments
- Automatic temperature compensation (1-65°C)
- Extended 2-year battery life for continuous monitoring
- Long 3-meter sensor cable for flexible placement
Package Includes
- LSM-100 Monitor with extra-large display
- 1/2" NPT threaded sensor probe with 3m cable
- 2 x AA batteries
- Instruction manual
Made in Korea by HM Digital - trusted worldwide for reliable water quality monitoring solutions.
